4k Ultra HD technology, combined with our cutting edge Dual Core Processor, gives you
unsurpassed image quality with richer and more vivid color tones. Provides a visual experience
like no other.

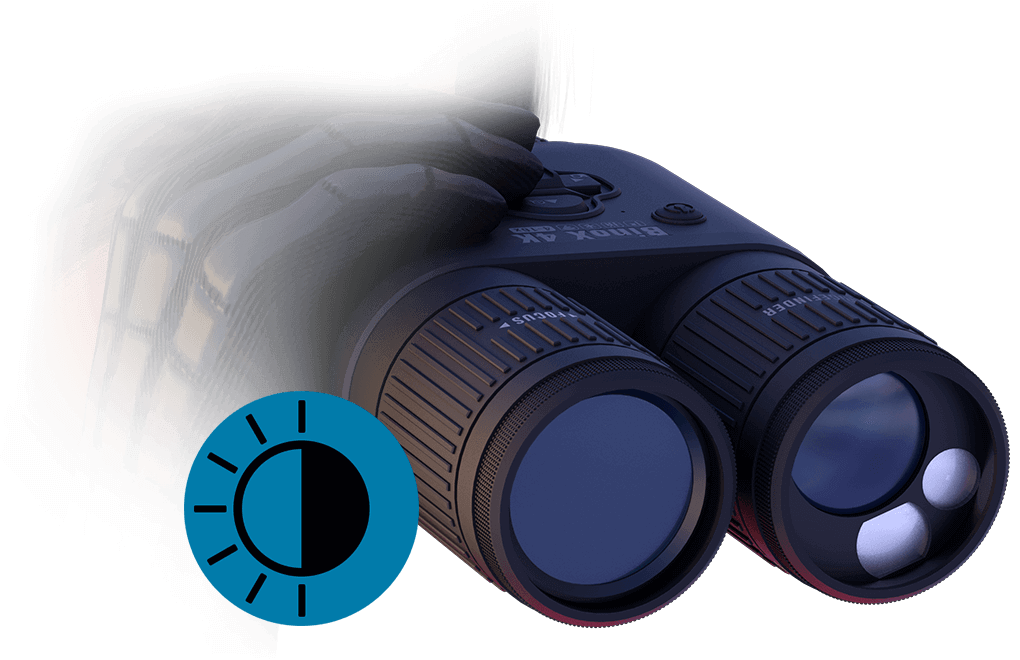

Day Mode
Night Mode
The ATN Obsidian Core is the technology behind our SMART HD optics. Powered by the
industry’s most advanced digital image processing architecture; our revolutionary night
vision optic lines are equipped with cutting-edge 4K Ultra HD Sensor and a Dual Core
Processor.

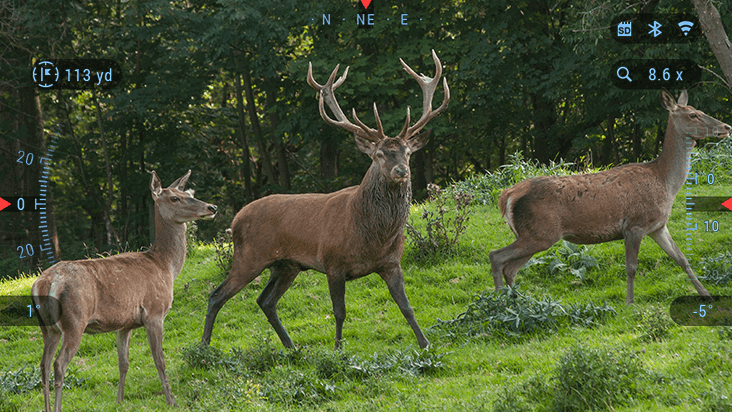

These technologically advanced products will deliver a picture quality that is unmatched, with
no loss of resolution up to 10X the magnification! Our intuitive user interface also provides

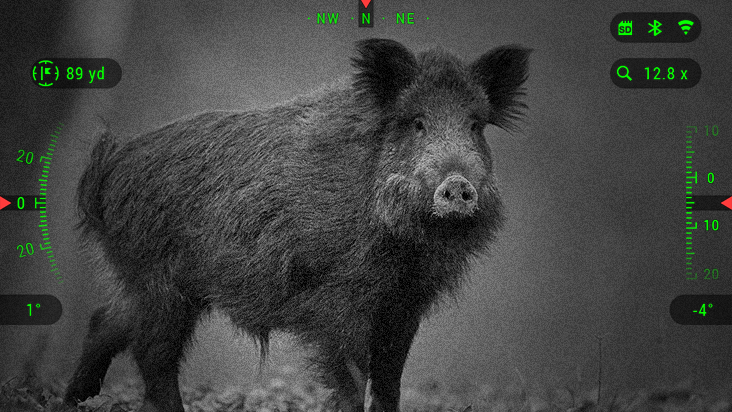

the operator with an easy to use menu options, and the convenience, efficiency and valuable
dual-purpose functionality you would want from an optic.
DISTANCE TO OBJECT DAY OR NIGHT
-

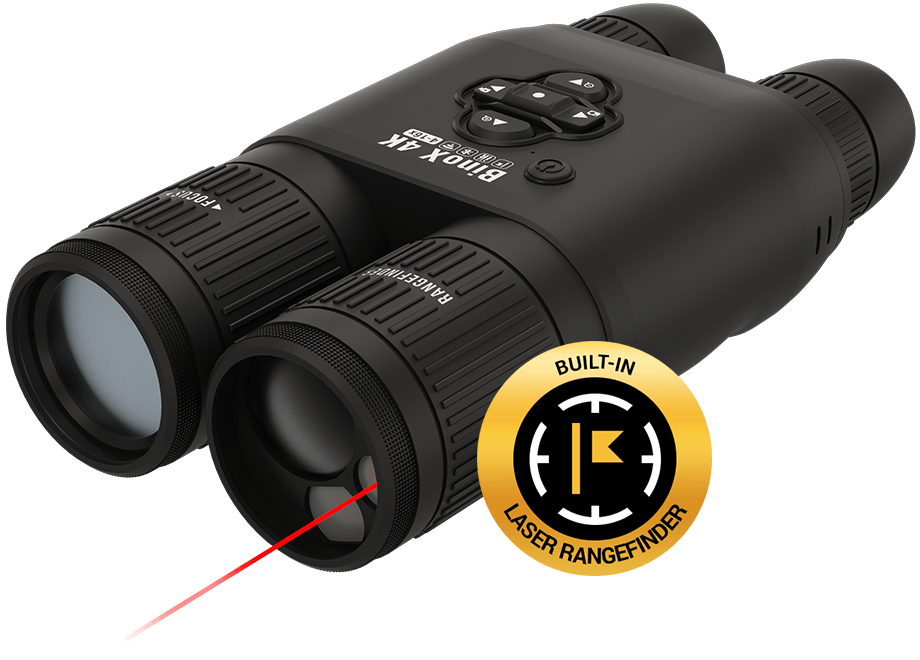

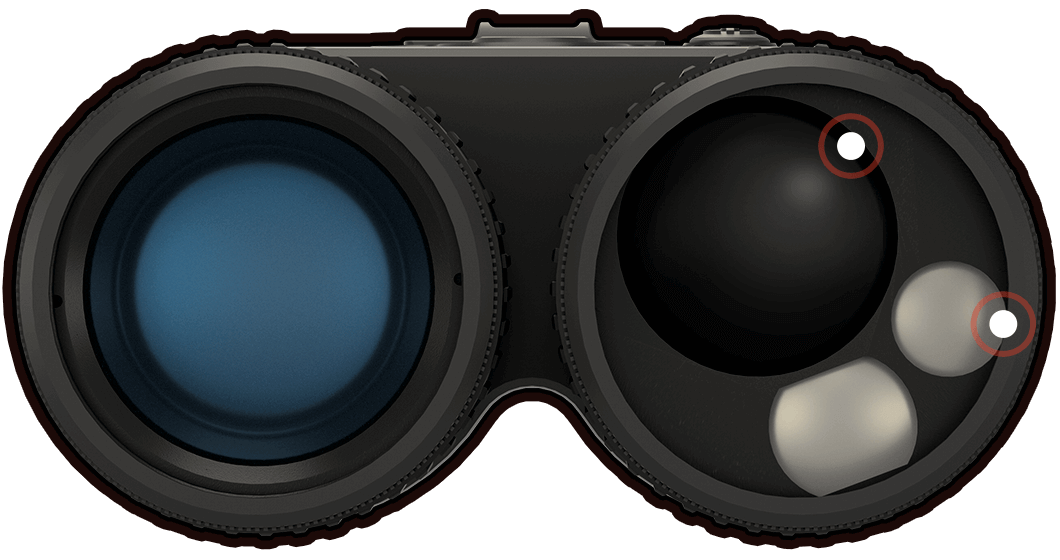

Built-In Laser Rangefinder
-
IR illuminator
We integrated a Laser Rangefinder, so you now have the ultimate binocular package that
has everything you want. Not only do you have the ability to see both day and night at
your fingertips, but you now have the ability to range distance to the object of
observation with absolute accuracy for dope hold over or know how far you need to trek
to your next waypoint.
Make capturing your experiences in stunning 1080p a regular part of your adventures. No
more missed opportunities of that once in a lifetime moment. ATN expands the boundaries
of Full HD video recording with rich colors and sharp details.

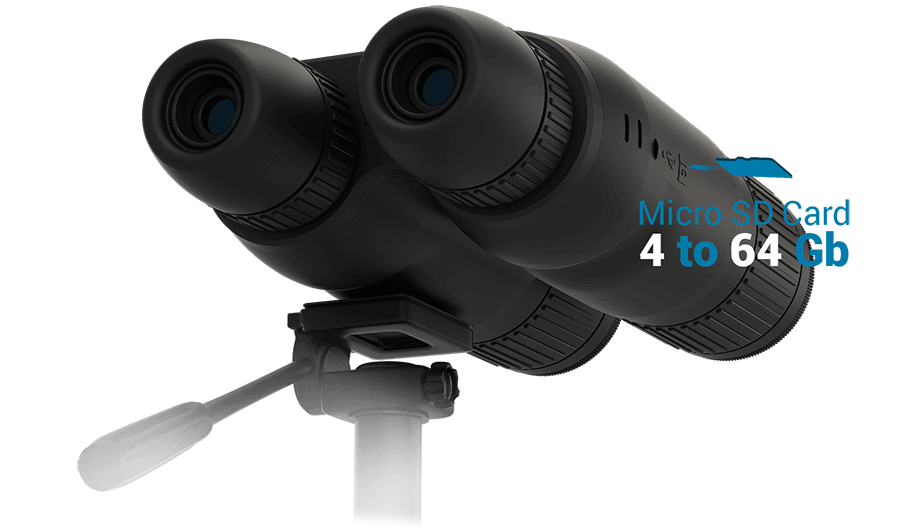

Insert your micro SD card and film your excursions without any additional USB cables or
additional devices. Bring your adventures back home and share with friends, family and
on social media!
Record in stunning 4K and blazing fast 120FPS - Slow down the film to see every little
detail in vivid 4K when using post production.
Why limit yourself? - Use the Best Cutting Edge Technology!
Why limit yourself? - Use the Best Cutting Edge Technology!
By incorporating a Dual Core Processor, we are now able to provide a much more enhanced
experience. Now, you can Live Stream via WiFi to a mobile device, and record in your
binocular at the same time. Without lag or loss of performance.
At the same time!

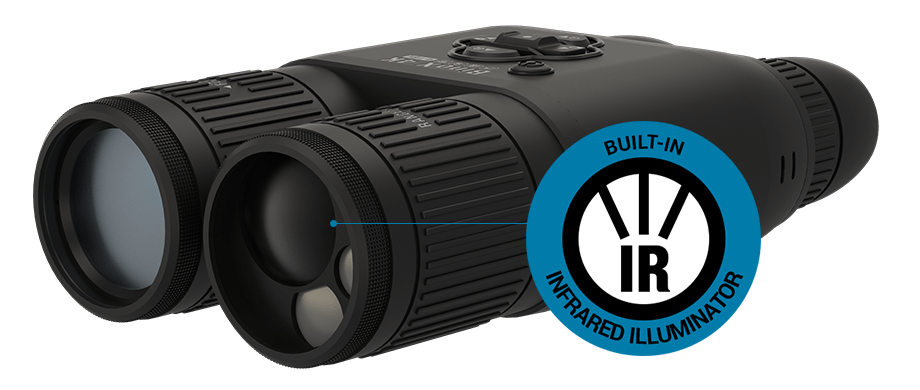

We’ve improved on the IR strength in our new BinoX 4K, giving better range in total darkness and
improved performance.
The new internal lithium Ion battery will keep your BinoX 4K alive late into the evening or
those early morning hours, with an incredible 15+ hrs of run time. Saving you money on buying
multiple reusable or one-time use batteries.
Just like your standard binoculars, ATN’s binoculars are designed with a comfortable eye
relief and interpupillary adjustment so anyone can use these digital binoculars with
comfort.
| done ATN BinoX 4K 4-16x | |
|---|---|
| SKU | DGBNBN4KLRF |
| Sensor | ATN 4K M265 Sensor 3864 (H) x 2218 (V) |
| Magnification | 4-16x |
| Angle of view | 6 deg |
| Field of view @ 1000 yards | 220ft |
| Objective lens | 40 mm |
| System Resolution | 600 lp/mm |
| Display Resolution | 1280x720x2 |
| Interpupillary adjustment range | 60-70 mm |
| Eye relief | 10-30 mm |
| Focus Range | 10 ft - ∞ |
| IR illuminator | Yes |
| Laser Range Finder | Yes |
| Precision to | ± 1 y/m |
| Range | 5-1000 y/m |
| Video Record Resolution | 1080p @ 30/60/120** |
| IP rating | Weather resistant |
| Charging | USB, type C |
| WiFi (Streaming, Gallery, & Controls) | iOS & Android |
| Bluetooth | Yes |
| 3D Accelerometer | Yes |
| 3D Gyroscope | Yes |
| 3D Magnetometer | Yes |
| E-Barometer | Yes |
| Smart Range Finder | Yes |
| E-Compass | Yes |
| Smooth Zoom | Yes |
| Night Vision Mode | Yes |
| Microphone | Yes |
| Micro SD Card | 4 to 64 Gb |
| Battery life (Li-ion) | 15+ hrs |
| Operating Temperature | -20°F to +120°F / -28°C to 48°C |
| Dimensions | 9.4" x 5" x 2.6" / 240x128x67 mm |
| Weight | 2.5 lb / 1.12 kg |
| Warranty | 2 years |
* This product is subject to one or more of the export control laws and regulations of the U.S.
Government and it falls under the control jurisdiction of either the US Department of State or
the US BIS-Department of Commerce. It is unlawful and strictly
prohibited to export, or attempt to export or otherwise transfer or sell any hardware or
technical data or furnish any service to any foreign person, whether abroad or in the United
States, for which a license or written approval of the U.S.
Government is required, without first obtaining the required license or written approval from
the Department of the U.S. Government having jurisdiction. For further information please
contact ATN.
** 120 fps Day mode only w/loss of widgets
Soft Carrying Case
Neck Strap
USB-C Cable
Lens Cover
Lens Tissue
